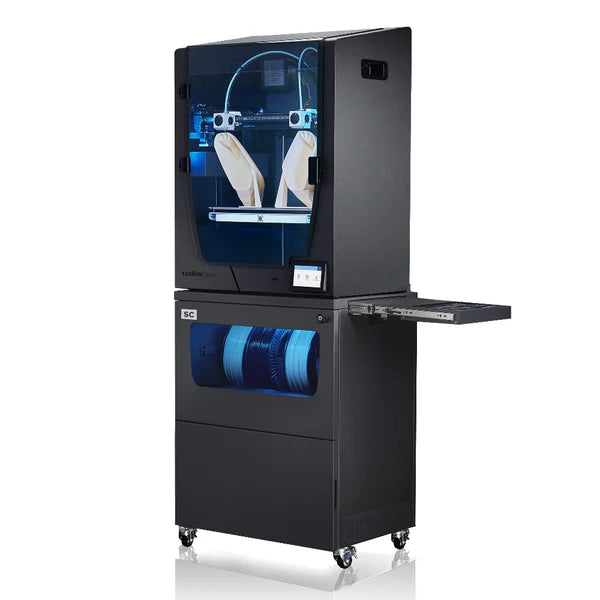

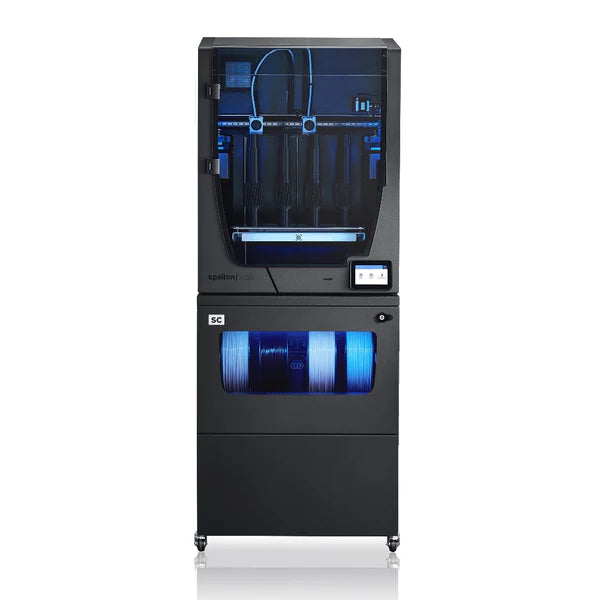

Epsilon W50 Smart Cabinet Bundle
BCN3D Epsilon W50
The Epsilon W50 is a powerful professional 3D printer, designed to deliver large-scale parts with industrial-grade materials, thanks to features such as its passive heated chamber and full enclosure. Powered by Independent Dual Extruder (IDEX) system, the Epsilon W50 delivers exceptionally strong functional parts with quality and precision.
Designed to perform. Full enclosure & passively heated chamber.
The Epsilon W50 and the Epsilon W27 count on a fully enclosed chamber keeping internal temperature controlled, where it can reach up to 60°C, and a heated bed reaching up to 120°C.
HEPA filter
The BCN3D Epsilon printers are equipped with a HEPA filter, which protects your working environment from potentially harmful particles when printing with industrial materials.
Safety pause
The Safety Pause feature will stop the printing process every time the enclosure door is opened, so that your experience will be fully safe through and through.
Carbon filter
The carbon filter on the BCN3D Epsilon printers shields your environment from any potentially harmful fumes produced by the materials used.
Printer Properties
3D Printing Technology Fused Filament Fabrication (FFF)
Architecture Independent Dual Extruder (IDEX)
Filament Management System BCN3D Smart Cabinet
Printing Volume 420mm x 300mm x 400mm (16.5” x 11.8” x 15.8")
Build Chamber Passive Heated Chamber
Fully enclosed
Safety Pause
Air Filtering Category H13 HEPA filter
Active Carbon filter
Number of extruders 2
Warranty 1 year
Extruder System Extruder Bondtech™ high-tech dual drive gears
Hotends optimized and manufactured by E3D
Printing modes Single mode
Duplication mode
Mirror mode
Multimaterial mode
Soluble Supports Mode
Calibration system Based on a piezoelectric sensor
Main Features:
* Accurate Z homing
* Quick assisted bed leveling
* Automatic XYZ offset extruder calibration
* Automatic Mesh Mapping
Electronics Single Board Computer: Toradex ARM Compute Module
Motion Board: BCN3D Electronics with Independent Stepper Drivers
Firmware Firmware BCN3D Embedded Linux distribution
BCN3D Epsilon - Marlin
Heated Bed Silicone thermal pad
Screen 5" full color capacitive touchscreen
Supported languages Spanish
English
German
French
Italian
Japanese
Portuguese
Chinese
Supported files *.gcode
Operating sound 49 dB(A)
Nozzle diameter Brass nozzle: 0.4mm (default) | 0.6mm | 0.8mm | 1.0mm
Hotend X: 0.6mm - Hotend M: 0.4mm
Certifications CE / FCC
Connectivity Offline printing: SD card
Online printing: WiFi or Ethernet (through BCN3D Cloud)
Materials
Filament 2.85 ± 0.05 mm
Compatible materials Standard Materials: PLA, Tough PLA, PET-G, TPU 98A, PVA, BVOH
Technical materials: ABS, PP, PA
Composite materials (only with Hotend X): pp GF30, PAHT CF15, PET CF15
Metal Materials (only with Hotend M): Ultrafuse 316L, Ultrafuse 17-4 PH
Open filament system Yes
Physical Properties
Overall Dimensions 690mm (W) x 530mm (D) x 900mm (H) (27.2” x 20.9” x 35.4”)
Weight 37kg (81.6 lb)
Shipping box dimensions 800mm (W) x 600mm (D) x 1370mm (H) (31.5” x 23.6” x 53.9”)
Shipping weight 62kg (136.7 lb)
Shipping method US Pallet
Printing Properties
Recommended profiles Layer height: 0.2mm | 0.3mm | 0.4mm (depending on nozzle diameter)
Layer height 0.05mm - 0.5mm (custom profiles)
Positioning resolution (X / Y / Z) 1.25µm / 1.25µm / 1µm
Operating temperature 15 ºC - 30 ºC
Extruder maximum temperature 300 ºC
Heated bed maximum temperature 120 ºC
Build chamber maximum temperature 60 ºC (depending on operating temperature)
Electric Properties
Input AC 100-240V, AC 8.4-3.5A, 50-60Hz
Maximum power consumption 840W
Software
File preparation software BCN3D Stratos
Operating Systems Windows, Mac, Linux
Supported files STL, 3MF, OBJ, AMF, DAE, ZAE, CTM, PLY, X3D, GLB, GLTF
Wireless connectivity BCN3D Cloud
Supported browsers Google Chrome, Mozilla Firefox, Microsoft Edge, Safari, Opera
